Description
LED Canopy Light with Occupancy Sensor | 26W/39W/52W/65W | 120-277V | 4000K-5000K Selectable

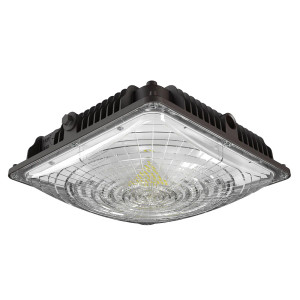

Commercial Bronze Slim Square Canopy Light combines field-selectable wattage, selectable color temperature, and integrated motion sensing in one versatile commercial fixture. Choose from 26W, 39W, 52W, or 65W output and 4000K Cool White or 5000K Daylight to match application needs, while the included occupancy motion sensor helps reduce energy use and improve security. Designed for parking garages, gas stations, warehouses, and covered exterior spaces, this low-profile canopy fixture delivers up to 8,525 lumens with excellent uniformity and automated lighting control.
Product Specifications
- Wattage Selectable: 26W / 39W / 52W / 65W
- Lumen Output: 3929 / 5575 / 7132 / 8525 lumens
- CCT Selectable: 4000K Cool White / 5000K Daylight
- Voltage: 120-277V
- Motion Sensor: Included
- Sensor Function: Occupancy-based automatic lighting control
- CRI: >70
- Efficacy: >140 lumens per watt
- Beam Angle: 155 degrees
- Dimming: 1-10V continuous dimming
- LED Type: 2835 LEDs
- Power Factor: >0.95
- Driver Efficiency: >89%
- Location Rating: Wet location
- Operating Temperature: -40F to 104F
- Fixture Size: 9.52 x 9.52 x 3.03 inches
- Housing: Die cast aluminum with polycarbonate lens
- Finish: Dark Bronze
- Life Rating: 50000+ hours
- Warranty: 5 year limited
- Certifications: UL Listed, DLC Premium
Benefits
- Included motion sensor helps reduce energy usage
- Selectable wattage supports multiple light output needs
- Selectable 4000K or 5000K color temperature adds jobsite flexibility
- Slim low-profile design works well in commercial canopy spaces
- High efficacy output helps lower operating costs
- Wet location construction supports indoor and outdoor applications
- Ideal for retrofit or new construction projects
Applications
- Parking garages
- Gas stations
- Warehouses
- Hallways
- Multipurpose rooms
- Supermarkets
- Covered walkways
- Commercial canopies
Downloads
Disclaimers
Extra Information
Brand:
LBS Lighting
Order Code:
902.0181
Light Source:
LED
Selectable Wattages:
Selectable
Wattage:
26/39/52/65 Watt
Motion Sensor:
Yes
Lighting Technology:
Integrated LED
Daylight Sensor:
Yes
Lumens:
3929/5575/7132/8525 lm
Dimmable:
Yes
Color Temperature:
CCT Selectable
CCT Range:
4000K/5000K
Fixture Finish:
Bronze
Fixture Application:
Area/General Lighting
Fixture Environment:
Outdoor
Fixture Shape:
Square
Shade/Lens Color:
Frost
Fixture Type:
Canopy
Height ( in.):
3.30
Width (in.):
10.05
Case Qty:
1
Warranty:
5 year
Price Shown:
Per Fixture
