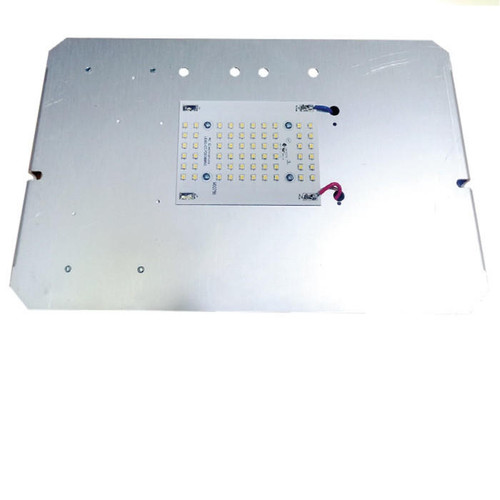

Name: HID to LED Wall Pack Retrofit Kit 37W 175W Metal Halide Replacement
Brand: ACE LEDS
SKU: AC-CMOW35/1.0/50
Price: 67.89 USD
Availability: InStock

Description

AC Electronics CMOW35/1.0/501 Conversion Plate - 3000 Lumens - 5000K - 120-277 Volt

The AC Electronics CMOW35/1.0/50 is a do-it-yourself LED retrofit kit that is designed to convert metal halide or HPS traditional wall pack lighting fixtures into energy saving LED fixtures. It fits any wall pack housing 8” high x 12” wide x 4” deep or larger. The minuteman 5 is super efficient conversion kit illuminates with a full spectrum light of 5000K and is equivalent to a 150-watt or 175-watt HID fixture. The housing encloses 10 Samsung LH351B LEDs that are mounted to an industrial-grade aluminum LED driver bracket. Approved to operate with a Tork 2107 Photocell.

Fits Any Wall Pack Housing 8”H x 12.0”W x 4”D or Larger

Includes:

Single-Output Channel, Class 2 LED Driver, Model Number: AC-40CD1.05ATSD
Instructions for Installation
All Required Assembly Hardware 1 PCB LED Array with 60 Samsung LH281B+ LEDs mounted to industrial grade aluminum LED/Driver bracket (60 LEDs per array)

Downloads

Specification Sheet

Disclaimers

*This product typically ships in 1 to 2 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 3 business days to ship. This item ships directly from the factory.

Extra Information

Brand:

ACE LEDS

UPC:

720043510495

Depth (in.):

3.25

Height (in.):

8.00

Length (in.):

11.80

Base:

Direct Wire

Case Quantity:

Catalog No:

LEDF-AC1002

Color Temperature:

5000K

Country of Origin:

Made in USA

CRI:

Energy Star:

Family:

Minuteman 5

Life Hours:

50,000

Lumens:

3000 Lumens

Order Code:

CMOW35/1.0/50

Equivalent:

175 Watt HID

Voltage:

120-277V

Warranty:

5 Year

Wattage:

37 Watt

Bulb Color:

Full Spectrum

Light Source:

LED

Warranty Information

Warranty LED Retrofit Kit warranty is only valid when it is used in 8â€H x 12.0â€W x 4â€D or Larger lighting housing it was designed to be used in unless otherwise approved in writing by AC Electronics. Any other use in any other lighting housing or use with non-AC specified or supplied components will void this warranty. *AC warrants to the purchaser that this LED Retrofit Kit will be free from defects in material or workmanship for a period of 5 years from date of manufacture, when operated at a maximum ambient temperature of 110Â°F or 45Â°C, when properly installed and under normal conditions of use. The warranty excludes damage resulting from improper installation or damage caused by fire or severe weather conditions including, but not limited to, lightning and storms. Evidence of direct exposure to water on the failed units voids the warranty.
