Description

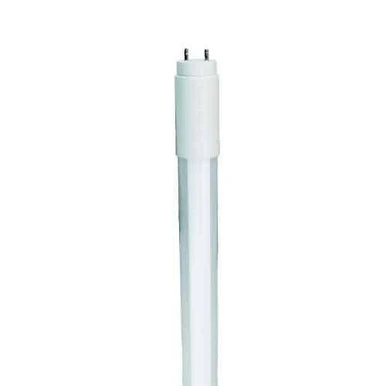

Replacement 24 Inch T5 LED Light Bulb - Ballast Bypass - Cool White - G5 Base - Dimmable
TCP LT5HE09B141K is a 2 ft T5 linear LED tube, using 9W, with ballast bypass installation, and a G5 Base, 4100K color temperature, 1400 lm light output, 120-277V operation, dimming support when used with compatible controls. It is built for commercial linear lighting maintenance, fluorescent tube replacement, and retrofit projects in offices, retail spaces, schools, warehouses, and facility applications.
Product Specifications
- Brand: TCP Lighting
- Model Number: LT5HE09B141K
- SKU: TCP-LT5HE09B141K
- Product Type: Linear LED Tube
- Lamp Type: T5
- Technology: LED
- Length: 2 ft
- Wattage: 9W
- Voltage: 120-277V
- Lumens: 1400 lm
- Color Temperature: 4100K
- Color Name: Cool White
- CRI: 80
- Base Type: Miniature Bi-Pin (G5)
- Install Type: Ballast Bypass
- Wiring: Single-Ended
- Dimmable: Yes
- Special Feature: Shatterproof
Benefits
- Ballast bypass operation supports direct-wire retrofit projects where the ballast is removed.
- G5 Base fitment helps match the correct linear lamp sockets.
- 1400 lm output supports bright, consistent illumination for commercial spaces.
- Dimmable operation allows light level control with compatible dimming systems.
- Shatterproof construction is useful for applications where lamp breakage protection matters.
Applications
- Office lighting
- Retail lighting
- School lighting
- Warehouse lighting
- Linear strip fixtures
- Troffer and wraparound fixtures
- Facility maintenance and contractor retrofit projects
