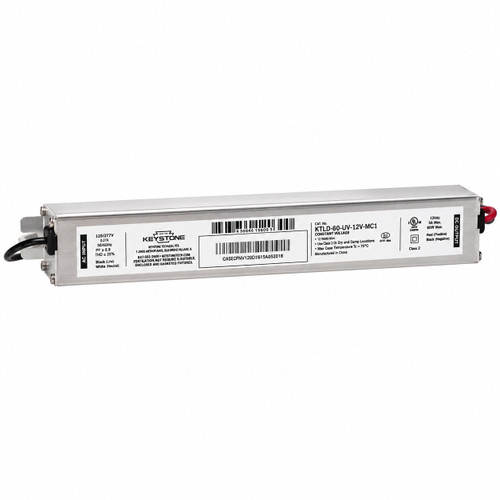

Keystone KTLD-60-UV-12V-MC1 - 60W 12V Constant Voltage LED Driver

Fixed Output LED Power Supply | 120/277V Input | 12V Output | Class 2

The Keystone KTLD-60-UV-12V-MC1 is a 60W constant voltage LED driver designed for 12V LED lighting applications. This fixed-output driver accepts 120/277V input power and provides a regulated 12V output for compatible low-voltage LED loads.  With Class 2 output, Class P listing, dry and damp location suitability, and built-in protection features, this Keystone LED driver is a practical replacement power supply for indoor LED fixtures, signage, accent lighting, cabinet lighting, and other 12V LED systems requiring a reliable 60W driver.

Product Specifications

• Brand: Keystone Technologies
• Model: KTLD-60-UV-12V-MC1
• Product Type: Constant Voltage LED Driver
• Total Power: 60W
• Input Voltage: 120/277VAC +/-10%
• Input Frequency: 50/60Hz
• Output Voltage: 12V
• Output Current: 5A
• Open Circuit Voltage: 12.8V
• Dimming: Fixed Output
• Power Factor: Greater than 0.9 under 120/277VAC input with 80-100% load condition
• Maximum Input Current: 0.7A at 120V, 0.4A at 230V, 0.3A at 277V
• THD: Less than or equal to 20% under 120/277VAC input with 80-100% load condition
• Output Tolerance: +/-5% at full load condition
• Turn-On Delay Time: Less than or equal to 0.5 seconds at full load condition
• Overshoot: Less than 10% at full load condition
• Ripple and Noise: Less than or equal to 5% of rated output voltage
• Typical Efficiency at 120V: 89%
• Typical Efficiency at 240V: 91%
• Typical Efficiency at 277V: 91%
• Operating Temperature: -20C to 50C
• Storage Temperature: -40C to 85C
• Humidity: 5% to 95%
• Maximum Case Temperature: 90C
• Life Rating: 50,000 hours at Tc less than or equal to 70C
• MTBF: Greater than 200,000 hours when operated at nominal input and output conditions and Tc less than or equal to 70C
• Location Rating: Suitable for dry and damp locations
• Safety Compliance: UL/cUL UL 8750, Class P, Class 2
• FCC Compliance: Class B at 120V and Class A at 277V
• Warranty: 5 Years

Benefits

• Constant voltage 12V output is suitable for compatible low-voltage LED lighting systems.
• 60W output supports LED loads up to 5A when properly matched to the driver.
• Fixed output design is simple to use when dimming control is not required.
• Class 2 output supports safer low-voltage LED installations.
• Built-in short circuit, over current, over temperature, open load, and over power protection helps protect the driver and LED load.
• Dry and damp location rating allows use in a range of indoor and protected applications.
• 5-year warranty provides long-term replacement confidence.

Applications

• 12V LED lighting systems
• LED strip lighting
• Under cabinet lighting
• Accent lighting
• Display lighting
• Signage lighting
• Fixture repair and LED driver replacement
• Dry and damp location LED applications

Protection Features

• Under-voltage brownout protection
• Short circuit protection
• Over current protection
• Internal over-temperature protection
• Output open load protection
• Over power protection
• Input over current protection with primary AC line fuse

Wiring and Installation Notes

• Input wiring: black and white leads
• Output wiring: red positive lead and blue negative lead
• Input leads: 203mm stranded and tinned, 9.5mm strip, 18AWG, 105C, 300V
• Output leads: 203mm stranded and tinned, 9.5mm strip, 18AWG, 105C, 300V
• Use only with compatible 12V constant voltage LED loads.
• Install according to local electrical codes and manufacturer instructions.

Custom Fields

• Current Type: Constant Voltage
• Dimming Type: Fixed Output
• Input Voltage: 120/277V
• Output Voltage: 12V
• Output Current: 5A
• Max Output Power: 60W
• Class 2: Yes
• Location Rating: Dry / Damp Location
• Operating Temperature: -20C to 50C
• Max Case Temperature: 90C
• Efficiency: 89% at 120V; 91% at 240V/277V
• Safety Listing: UL/cUL UL 8750, Class P, Class 2
• Warranty: 5 Years

Downloads

Non-Returnable Item Notice:

Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.
