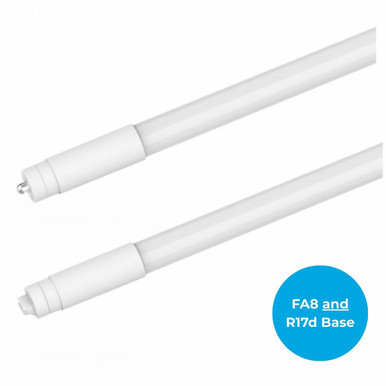

Halco 87221 96T8-40-850-DE-BYP3-LED - 8 ft LED T8 Tube - 40W - Type B - 5000K

Ballast Bypass T8 LED Lamp | 5500 Lumens | 120-277V | Double-Ended Wiring | Daylight

Halco 87221 96T8-40-850-DE-BYP3-LED is an 8 ft 40W Type B LED T8 tube designed to replace traditional fluorescent lamps in commercial, industrial, warehouse, signage, and utility lighting applications. This 96" ballast bypass lamp delivers 5500 lumens, produces 5000K daylight illumination, operates on 120-277V, and includes changeable FA8 and R17D end caps for installation flexibility.

Product Specifications

• Brand: Halco
• Product SKU: 87221
• Product Code: 96T8-40-850-DE-BYP3-LED
• Product Type: 8 ft T8 Type B LED lamp
• Installation Type: Type B ballast bypass
• Wiring: Double-ended wiring
• Nominal Length: 96"
• Diameter: 1"
• Wattage: 40W
• Fluorescent Equivalent: 110W
• Lumen Output: 5500 lumens
• Efficacy: 138 LPW
• Color Temperature: 5000K
• Color Description: Daylight
• CRI: 82
• Voltage: 120-277V
• Frequency: 50/60 Hz
• Power Factor: 0.95
• Dimming: No
• Housing Material: Glass
• End Caps: FA8 and R17D included
• Base Type: FA8 and R17D
• Beam Angle: 210 degree
• L70 Lifetime: 50,000 hours
• Operating Temperature: -20C to 45C
• Environment: Damp location
• Listings: cULus, DLC 5.1 Standard, NSF, FCC, RoHS, Damp Location Rated
• DLC Product ID: S-J8Q1TS
• Replaces: 82878, 82876
• Weight: 0.914 lbs.
• Warranty: 5 years

Benefits

• Type B ballast bypass design eliminates the existing fluorescent ballast from the circuit.
• 8 ft LED T8 format is designed for replacing traditional 96" fluorescent tubes.
• 5500 lumen output provides bright illumination for large commercial and industrial spaces.
• 5000K daylight color supports clear visibility in warehouses, work areas, and utility spaces.
• Changeable FA8 and R17D end caps help simplify inventory and fixture compatibility.
• Glass tube construction and plastic end caps provide a familiar linear lamp format.
• 50,000 hour L70 lifetime helps reduce relamping and maintenance.
• Damp location, NSF, RoHS, FCC, and cULus listings support a range of commercial applications.

Applications

• Warehouses and storage areas
• Industrial lighting
• Commercial facilities
• Manufacturing and assembly lines
• Utility lighting
• Signage and backlit displays
• Retail back-of-house areas
• Fluorescent 8 ft T8 ballast bypass retrofits
