Description
10 Watt Emergency Power Backup LED Driver | UL Listed | 120-277 Volts
This compact and powerful unit provides reliable backup lighting, ensuring safety and visibility in critical situations.
Key Features:
- Compact Design: Modular design for flexible installation in tight spaces.
- 10W Output: Delivers strong illumination for enhanced visibility.
- UL Listed: Meets stringent safety standards for peace of mind.
- Long Battery Life: LiFePO4 battery ensures reliable performance for years.
- Versatile Application: Suitable for both switched and unswitched fixtures.
- Energy Efficient: Optimizes power consumption for cost savings.
- Easy Installation: Hassle-free setup for quick deployment.

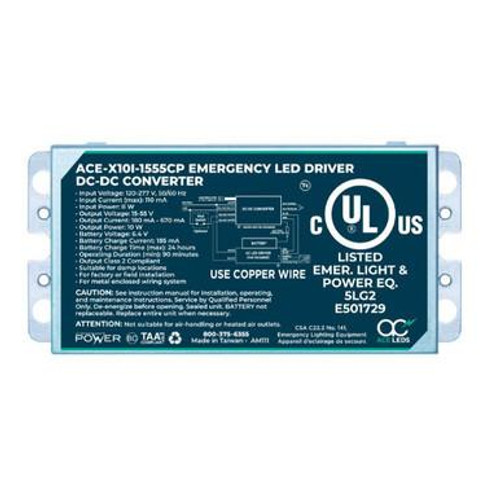

Ace ACE-X10i-1555CP Isolated Backup LED Driver DC Converter Specifications:
General Information:
- Brand: Ace
- Model: ACE-X10I-1555CP
- Type: Emergency LED Driver
- Mounting Type: Bottom Mount
Performance:
- Output Power: 10W (Constant)
- Emergency Operating Time: 90 minutes
- Battery Type: LiFePO4
- Input Voltage: 120-277 Vac, 50/60Hz
- Output Voltage: 15-55 Vdc
- Ambient Operating Temperature: 0°C to 55°C
Dimensions:
- Converter Dimensions: 5.23 in L x 2.48 in W x 1.18 in H
- Battery Dimensions: 3.35 in L x 2.44 in W x 1.38 in H
Certifications:
- UL Listed: Yes (UL924)
Warranty:
- 5 years warranty based on a maximum case temperature of ≤ 60°C
- 3 years warranty based on a maximum case temperature of ≤ 66°C
Ideal for:
- Commercial buildings
- Residential properties
- Retail establishments
- Offices
- Hospitals
- Schools
Experience the power and convenience of the Ace ACE-X10I-1555CP. Order yours today!
Downloads
Extra Information
Brand:
ACE LEDS
Catalog No:
ACE-X10i-1555CP
Driver Type:
Emergency
Ballast Type:
LED Driver
Light Source:
LED
Dimmable:
-
Max. Power:
8 Watt
Input Voltage:
120-277Vac
Output Voltage:
15-55 V
Input Frequency:
50/60 Hz
Warranty:
5 Year
Length (in.):
5.23
Width (in.):
2.48
Height (in.):
1.18
Mounting (in.):
4.84
Price Shown:
Per Driver
