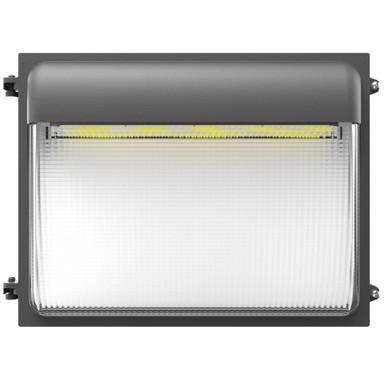

87830-SU Sunlite - Outdoor Black Slim LED Wall Pack - 100W/120W/150W/185W - 3000K/4000K/5000K

Exterior LED Wall Pack - Wet Rated - Black Finish - Selectable Wattage and CCT - Photocell

Sunlite 87830-SU is an outdoor black slim LED wall pack with selectable 100/120/150/185 watt output, selectable 3000K/4000K/5000K color temperature, 25900 lumens, 120-277V operation, 0-10V dimming, and a built-in photocell on/off switch. It is built for commercial exterior and security lighting.

Product Specifications

• Brand: Sunlite
• Model Number: 87830-SU
• Product Type: LED wall pack
• Fixture Type: Outdoor LED wall pack
• Indoor/Outdoor: Outdoor
• Location Rating: Wet Rated
• Fixture Shape/Design: Slim
• Finish: Black
• Socket Type: Integrated LED
• Technology: Integrated LED
• Wattage: 100/120/150/185 Watt
• Selectable Wattage: 100/120/150/185 Watt
• Voltage: 120-277V
• Lumens: 25900 lm
• Color Temperature: 3000K/4000K/5000K
• Selectable CCT: 3000K/4000K/5000K
• CRI: 70
• Dimmable: Yes
• Dimming Type: 0-10V Low Voltage
• Photocell: Built-in Photocell On/Off Switch
• Width: 19 inches
• Height: 14 inches
• Depth: 5 inches
• Beam Angle: 100
• Life Hours: 50000
• Certifications: UL Listed, DLC Listed
• Warranty: 5 years

Benefits

• Selectable wattage and CCT allow on-site adjustment for commercial projects.
• Built-in photocell supports dusk-to-dawn control.
• 0-10V dimming supports compatible commercial lighting controls.
• Wet rated, UL listed design supports outdoor wall pack installations.

Applications

• Building perimeter lighting
• Parking areas
• Loading docks
• Security lighting
• Warehouses
• Commercial properties

Downloads

Disclaimers

*Typically ships within 2-3 business days. Lead times are estimates and may vary based on quantity and availability. Ships directly from the manufacturer.
