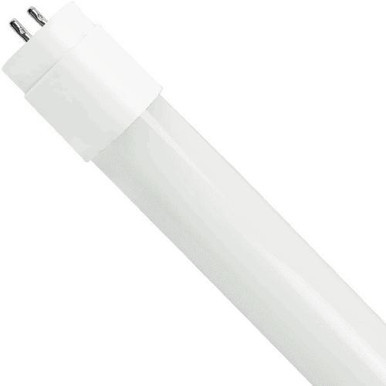

TCP L13T8BY5030K - NSF Rated 4 ft LED T8 Tube - Shatterproof PET Coated - Type B - 3000K

LiberaT8 48" LED Light Bulb | Ballast Bypass | Shatterproof PET Coated Glass | Single or Double-Ended | Soft White

TCP L13T8BY5030K is an NSF rated 4 ft LED T8 tube from the TCP LiberaT8 family, designed for Type B ballast bypass retrofit installations. This 13.5W shatterproof PET coated glass lamp replaces a 32W fluorescent T8 tube, delivers 1700 lumens, produces 3000K soft white illumination, operates on 120-277V, and supports single or double-ended wiring with compatible G13 sockets.

Product Specifications

• Brand: TCP
• Model Number: L13T8BY5030K
• Product Family: LiberaT8
• Product Type: LED T8 tube
• Installation Type: Type B ballast bypass
• Length: 4 ft
• Nominal Length: 48"
• Wattage: 13.5W
• Fluorescent Replacement: 32W T8
• Lumen Output: 1700 lumens
• Efficacy: 133.3 LPW
• Color Temperature: 3000K
• Color Description: Soft White
• CRI: 80
• Voltage: 120-277V
• Base Type: G13
• Construction: Shatterproof PET coated glass
• NSF Rated: Yes
• Wiring: Single or double-ended
• Socket Compatibility: Shunted or non-shunted sockets
• Rated Life: L70 50,000+ hours
• Beam Angle: 190 degree
• Field Angle: 300 degree
• Minimum Starting Temperature: -30C
• Maximum Operating Temperature: 45C
• Environment: Damp and dry locations
• Enclosed Fixture Rated: Suitable for enclosed luminaires
• Listings: UL Classified, UL Component Recognized, ETL Sanitation Listed to NSF Standard 2
• Master Pack: 25
• Warranty: 5 years

Benefits

• NSF rated PET coated glass construction supports compliance-focused commercial lighting applications.
• Shatterproof coating helps make this lamp suitable for areas where coated tubes are preferred.
• LiberaT8 family identification helps match this lamp to TCP ballast bypass T8 replacement searches.
• Type B ballast bypass operation removes the fluorescent ballast from the circuit.
• Single or double-ended wiring gives installers flexibility during retrofit installation.
• Compatible with shunted or non-shunted sockets when wired according to the installation method.
• 3000K soft white output provides a warmer option for restaurants, hospitality areas, retail spaces, and interior commercial lighting.
• 1700 lumen output replaces a 32W fluorescent T8 tube while using 13.5W.
• Damp/dry location rating and enclosed luminaire suitability provide broader installation flexibility.
• 50,000+ hour rated life helps reduce maintenance and relamping.

Applications

• Restaurants
• Hospitality spaces
• Food service lighting areas
• Commercial kitchens
• Retail stores
• Schools
• Hospitals
• Offices
• Lobbies
• Commercial building retrofits
• NSF rated lighting applications
• Linear fluorescent T8 ballast bypass upgrades
