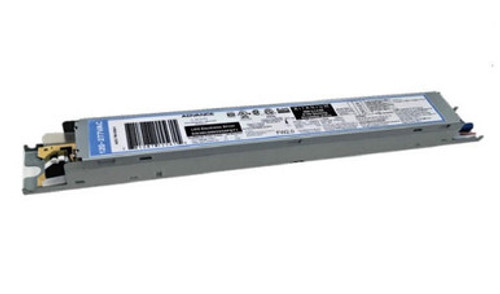

Philips Advance XI020C056V054BST3M Programmable LED Driver

Advance by Signify

SKU:
PL-2703813
Typically ships in 7-10 business days* View full description
Philips Advance XI020C056V054BST3M
Sold by the Case of:
18 units
$21.52
Customer Reviews
Pack
18

Description

20W Xitanium High-efficiency Compact LED Driver | 0-10V Dimming | 120-277V

The Philips Advance XI020C056V054BST3M Xitanium LED Driver is engineered for OEMs seeking flexibility and precision in linear LED applications. This 20W driver offers compatibility with standard 0-10V dimming systems, providing smooth dimming performance down to 1%. Featuring SimpleSet technology, it allows for precise current tuning, adjustable dimming curves, and customizable minimum dimming levels, making it an ideal choice for creating energy-efficient and versatile linear lighting solutions.

Key Features:

  • 20W Output Power: Suitable for linear LED applications and fixtures
  • 0-10V Dimming Compatibility: Provides smooth dimming from 1% to 100%
  • SimpleSet Technology: Precise tuning of drive currents and dimming curves for customizable performance
  • Adjustable Minimum Dimming Levels: Offers flexibility to meet specific application requirements
  • Slim, Compact Profile: Designed for easy integration into space-constrained lighting fixtures
  • Wide Operating Windows: Ensures compatibility with a variety of linear lighting applications
  • High Efficiency: Reduced energy consumption and increased cost-effectiveness

Philips Advance XI020C056V054BST3M Programmable LED Driver Specifications:

  • Model: Philips Advance XI020C056V054BST3M
  • Input Voltage: 120V-277V AC
  • Output Voltage: Fixed at 54V
  • Output Current: 0-350mA (programmable)
  • Output Power: 20W
  • Dimming Control: 0-10V dimming, adjustable minimum dimming
  • Housing: Slim and compact design for easy fixture integration
  • Efficiency: High-efficiency performance for reduced operational costs
  • Protection Features: Over-voltage, over-current, and short-circuit protection
  • Certification: UL, CE, RoHS compliant

Applications:

  • Ideal for linear lighting systems, including office spaces, retail, and hospitality
  • Perfect for LED retrofits or upgrades in existing fixtures
  • Suitable for high-efficiency downlights, wall sconces, and pendant lights
  • Customizable for various lumen outputs in commercial, industrial, and residential applications
  • Designed for luminaires that require adjustable dimming performance for optimal lighting control

Disclaimers

*This product typically ships in 7 to 10 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will be longer than 10 business days to ship. Due to the speciality nature of this product, all sales are final.

Extra Information

Brand:
Advance by Signify
UPC:
929002703813
Order Number:
XI020C056V054BST3M
Input Voltage (Vac):
120-277
Output Power (W):
20 Watt
Output Voltage (V):
10-54 Class 2 Output
Output Current (A):
0.1 - 0.56
Efficiency @ Max Load and 75°C Case:
86.0% - 87.0%
Max Case Temp. (°C):
Life75°C UL80°C
Input Current (A):
0.2 - 0.09
Max. Input Power (W):
24.8
THD @ Max Load (%):
Power Factor @ Max Load:
>0.95
Surge Protect. (Ring Wave, KV):
2.5
Envir. Protect. Rating:
UL damp & dry
Dimming:
0-10V Analog Class 1 or Class 2 Wiring
Dimming Range (with specified dimmers):
1% - 100% (Constant Current)
Minimum Output Current (A):
0.001
Driver Type:
Constant Current
Other Comments:
Dimming source current: 150 µA
Pack:
18
