Description
30W/35W/40W Switchable | 3500K–5000K Tunable | 120–277V | 0–10V Dimmable

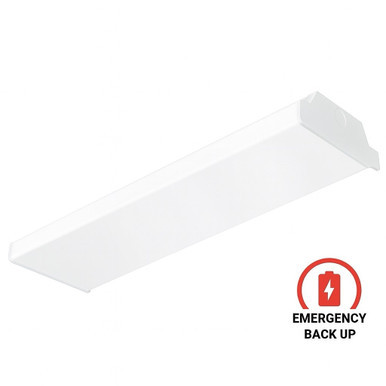

This 4ft LED wrap ceiling light with integrated 8W emergency battery back-up delivers high-efficiency illumination for commercial and institutional environments. Designed with field-adjustable wattage and selectable color temperature, the fixture allows installers to tailor light output and color to suit a variety of applications. The built-in emergency battery provides 90 minutes of backup lighting during power interruptions, ensuring safety and code compliance. Combined with 0–10V dimming capability and optional motion sensor compatibility, this wrap fixture supports energy-conscious operation in offices, schools, healthcare facilities, and retail spaces.
Product Specifications
- Fixture Type: 4ft LED Wrap Ceiling Light with Emergency Backup
- Length: 47.7 inches (1211.8 mm)
- Width: 7.1 inches (180 mm)
- Depth: 2.8 inches (71 mm)
- Weight: 7.94 lbs
- Wattage: 30W / 35W / 40W (Field Adjustable)
- Lumen Output: 4,110 / 4,690 / 5,240 lumens
- CCT: 3500K / 4000K / 5000K (Selectable)
- CRI: >80
- Input Voltage: 120–277V AC
- Power Factor: >0.98
- Driver Efficiency: >90%
- Dimming: 0–10V Continuous Dimming
- Emergency Battery: 8W, 90-minute runtime
- Operating Temperature: -20°C to +50°C
- Mounting: Surface Mount
- Optional Accessory: Microwave Motion Sensor
- Rated Life: 75,000+ hours
Performance & Reliability
- Integrated emergency battery provides backup illumination during outages
- Field-adjustable wattage and color temperature for on-site flexibility
- Uniform light distribution for general ambient applications
- Designed for commercial and institutional installations
Applications
- Office buildings and corridors
- Schools and classrooms
- Retail stores and supermarkets
- Hospitals and healthcare facilities
- Multipurpose rooms and halls
- Emergency egress lighting
Disclaimers
- Special Product Nature: Please be aware that due to the unique characteristics of these emergency battery back-up fixtures, they cannot be returned once purchased.
- Shipping and Lead Time: This product is custom-made and typically dispatched within 3 to 5 business days. For larger orders, the preparation time may exceed the usual lead-time. All provided lead-times are approximate, and you will receive an email notification if shipping is expected to take longer than 5 business days.
- Shipping Charges: Despite their light weight (approximately 6 lbs), these items incur a dimensional weight surcharge by UPS/FedEx, leading to higher shipping costs.
Extra Information
Brand:
LBS Lighting
Order Code:
907.0148-201.0410-BS
Fixture Type:
Emergency
Emergency Operation:
90 Minute
Emergency Lumens:
Up to 1,048 Lumens
Color Temperature:
CCT Selectable
CCT Range:
3500K/4000K/5000K
Wattage:
Selectable
Wattage Range:
30W/35W/40W
Lumens:
Up to 5240
Fixture Environment:
Indoor
Fixture Shape:
Linear
Fixture Finish:
White
Shade/Lens Color:
White
Shade/Lens Material:
Acrylic
Base Color:
White
Length (in.):
47.70
Width (in.):
7.10
Height (in.):
2.75
CRI:
> 80
Voltage:
120/277V
Light Source:
LED
Case Quantity:
1
Warranty:
5 Year
Price Shown:
Per Fixture
Lighting Technology:
Integrated LED
Warranty Information
5 Years
