Description
200W Replacement LED Driver | 700-1000mA Adjustable | 277-480VAC | 0-10V Dimmable | IP54

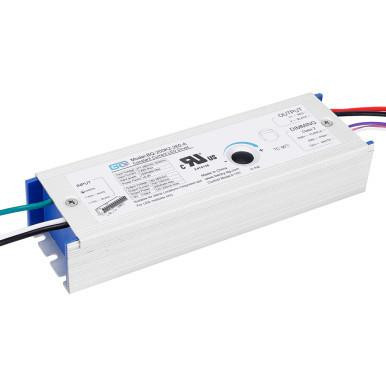

The BQ-200K2-260-A is a 200W constant current LED driver engineered for high-power commercial and industrial luminaires operating on 277-480VAC input. It delivers adjustable output current from 700mA to 1000mA across a 180-260VDC output range, supporting a wide range of high-voltage LED arrays. This model includes isolated 0-10V dimming with dim-to-off capability and a built-in 12V auxiliary output (12VDC / 200mA max) for compatible sensors or control accessories. Designed for demanding environments, the driver features IP54 protection, 6KV surge protection (DM and CM), and automatic recovery protection functions.
Electrical Specifications
- Model: BQ-200K2-260-A
- Driver Type: Constant Current
- Maximum Output Power: 200W
- Output Voltage Range: 180-260VDC
- Output Current: 700-1000mA Adjustable
- Input Voltage: 277-480VAC
- Input Voltage Range: 249-528VAC
- Input Frequency: 50/60Hz
- Maximum Input Current: 0.82A Max
- Maximum Input Power: 220W Max
- Power Factor: ≥0.90
- Efficiency: Up to 95%
- THD: ≤20%
- Inrush Current: 120A @480VAC
- Turn-On Delay: ≤750ms
- No Load Voltage: ≤315VDC
Dimming & Auxiliary Output
- Dimming Type: Isolated 0-10V (Class 2)
- Dim-to-Off: Supported
- Auxiliary Output: 12VDC, 0-200mA Max
Protection & Construction
- IP54 Rated
- Surge Protection: 6KV DM (L/N), 6KV CM
- Automatic Recovery Protection
- Aluminum Housing for Thermal Performance
- Suitable for Damp Locations
Applications
- High bay lighting systems
- Industrial luminaires
- Area and site lighting
- Fixtures requiring 480V input compatibility
Disclaimers
- Verify LED voltage and current compatibility prior to installation.
- This product typically ships in 1 to 2 business days. Larger quantities may take longer than stated lead-time.
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory. Due to the special nature of this product, it is classified as non-returnable. Please ensure compatibility and suitability before purchase
Non-Returnable Notice
Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.
