Description

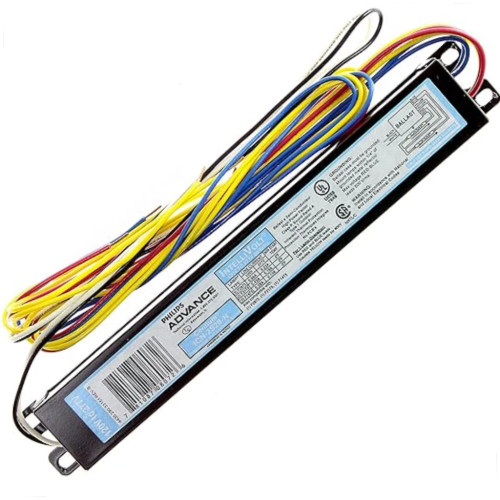

Programmed Start T5 Ballast for Dual Fluorescent Lamps
The Advance ICN-2S28-N Centium T5 electronic ballast is designed to operate two T5 fluorescent lamps across a wide 120–277V input range. Built with programmed start technology, this ballast helps extend lamp life by reducing electrode wear during startup, making it well suited for applications with frequent on/off cycling. Its high power factor and low harmonic distortion support efficient, stable performance in commercial lighting systems.
Applications
- Commercial and institutional fluorescent fixtures
- Office and administrative lighting
- Schools and healthcare facilities
- Retail and general interior lighting
- T5 fluorescent ballast replacement projects
Specifications
- Brand: Advance (Signify)
- Series: Centium T5
- Model: ICN-2S28-N
- Ballast Type: Electronic
- Starting Method: Programmed Start
- Lamp Type: T5 Fluorescent
- Number of Lamps: 2
- Compatible Lamps: F14T5, F21T5, F28T5, F28T5/ES, F35T5
- Input Voltage: 120–277V
- Input Frequency: 50/60 Hz
- Ballast Factor: 1.03 (F28T5, two-lamp)
- Power Factor: >0.98
- Total Harmonic Distortion: <10%
- Lamp Current Crest Factor: ≤1.7
- Minimum Starting Temperature: 0°F (-18°C)
- Sound Rating: Class A
- Wiring Configuration: Series
- Enclosure Length: 9.5 inches
- Enclosure Width: 1.3 inches
- Enclosure Height: 1.0 inch
- Mounting Distance: 8.9 inches
- Certifications: UL Listed, CSA Certified
- Warranty: 5 Years
LED Lamp Compatibility Note
- May operate compatible T5 LED Type A or Type A/B lamps when listed by the LED lamp manufacturer.
