Description

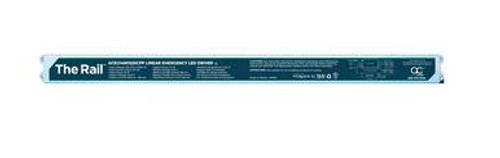

120-277V Emergency Battery Back Up LED Driver | 10 Watt | 50/60 Hz
The Ace ACE-G10B-180CP Emergency LED Driver keeps your lights on – even during a power outage!
Here's what makes it stand out:
- 90 Minutes of Backup Power: Provides continuous illumination for 90 minutes at a steady 10 watts during a power failure.
- Universal Compatibility: Works with various Type B LED tubes, including dimmable models.
- Enhanced Safety: Features over-voltage, over-temperature, and short-circuit protection for safe operation.
- Effortless Installation: Simple two-wire connection minimizes installation time and complexity.
- Versatile Applications: Ideal for both indoor and damp locations, meeting various lighting needs.
- Reliable Performance: UL and cUL listed for emergency lighting power supply, ensuring safety and quality.
- Code Compliant: Meets relevant lighting and safety regulations like DLC and CA Title 20.
Perfect for:
- Offices & Businesses
- Schools & Universities
- Healthcare Facilities
- Hospitality & Retail Spaces
- And Anywhere Reliable Backup Lighting is Crucial!
Ace ACE-G10B-180CP Emergency LED Driver Specifications:
Electrical:
- Input Voltage: 120-277 VAC
- Input Frequency: 50/60 Hz
- Output Power: 10W (Constant Power During Emergency Mode)
- Backup Time: 90 Minutes
Compatibility:
- LED Tube Compatibility: Type B LED Tubes (including dimmable models)
- Dimming Compatibility: Compatible with TRIAC phase-cut dimming (when used with compatible dimmable Type B LED tubes)
Physical:
- Dimensions: Refer to manufacturer datasheet for specific dimensions.
- Material: Metal Enclosure
Performance:
- Automatic Shut Down: For incompatible TLED installation
- Suitable Locations: Indoor & Damp Locations
- Safety Features:
- Over-voltage protection
- Over-temperature protection
- Short-circuit protection
Certifications:
- Safety: UL and cUL Listed as an Emergency Lighting Power Supply (UL924)
- Regulatory Compliance:
- FCC Commercial Limits compliant (EMI)
- RoHS compliant
- DLC Fixture Compliance (suitable)
- CA Title 20 compliant (Battery Charger)
Downloads
Non-Returnable Item Notice:
Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.
Extra Information
Brand:
ACE LEDS
Catalog No:
ACE-G10B-180CP
Driver Type:
Emergency
Ballast Type:
LED Driver
Light Source:
LED
Dimmable:
Yes
Max. Power:
10 Watt
Input Voltage:
120-277V
Output Voltage:
120-180 Vdc
Input Frequency:
50/60 Hz
Warranty:
5 Year
Length (in.):
15.55
Width (in.):
1.49
Height (in.):
1.16
Mounting (in.):
15.23
Price Shown:
Per Driver
